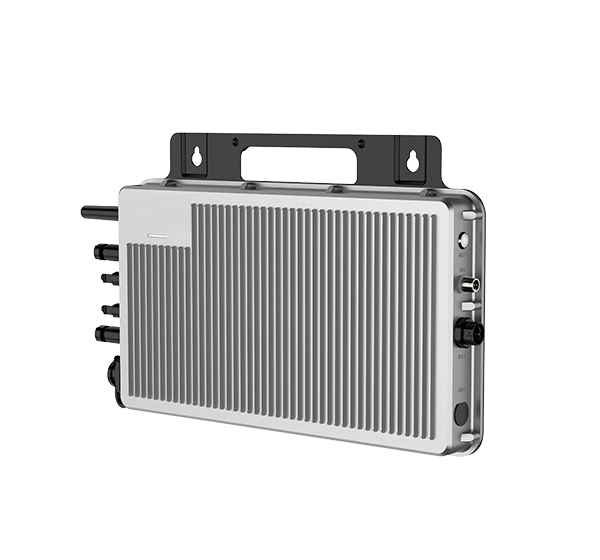

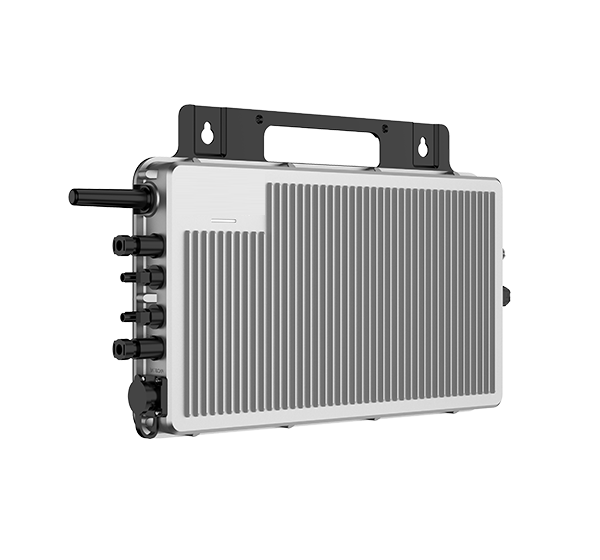

BDHX-1000/2000
Describe
BDHX-1000/2000
PV Input
| Recommended. PV Module /W | BDHX-1000：600 x 2
BDHX-2000：600 x 4 |
| MPPT Voltage Range /V | 22-55 |
| Startup Voltage /V | 25 |
| Max. Input Voltage /V | 60 |
| Max. DC Short Circuit Current /A | BDHX-1000：20 x 2
BDHX-2000：40 x 2 |
| PV Overvoltage Protection Category II | II |
AC output(On-Grid)
| Recommended. PV Module /W | BDHX-1000：1000
BDHX-2000：2000 |
| Rated AC Output Voltage/V | 230 |
| Max. Continuous Output Current /A | BDHX-1000：4.35
BDHX-2000：8.69 |
| Nominal Frequency /Hz | 50/60 |
| Power Factor | -0.8—+0.8 |
| THD @ rated power | <5%(at rated power) |
AC output(OFF-Grid)
| Rated AC Output Voltage/V | 230 |
| Rated AC Output Power/VA | BDHX-1000：1000
BDHX-2000：2000 |
| Nominal Frequency/Hz | 50/60 |
| Max AC Output Power/W |
BDHX-1000：2000(last for 20s) BDHX-2000：3000(last for 20s) |
Battery
| Battery Type | LFP |
| Battery Voltage/V | 40-60 |
| PV Max Charge current/A | BDHX-1000：30
BDHX-2000：40 |
| AC Charge rated power/W | BDHX-1000：1000
BDHX-2000：2000 |
| Max Discharge power/W | BDHX-1000：1000
BDHX-2000：2000 |
Others
| Operating Ambient Temperature Range/℃ | -40 ~+65 |
| Communications | Wifi/ blue tooth |
| Protection Class | IP65 |
| Cooling | Natural convection |
| UPS function | YES |
| OFF-Grid output paralell | 4PCS |
