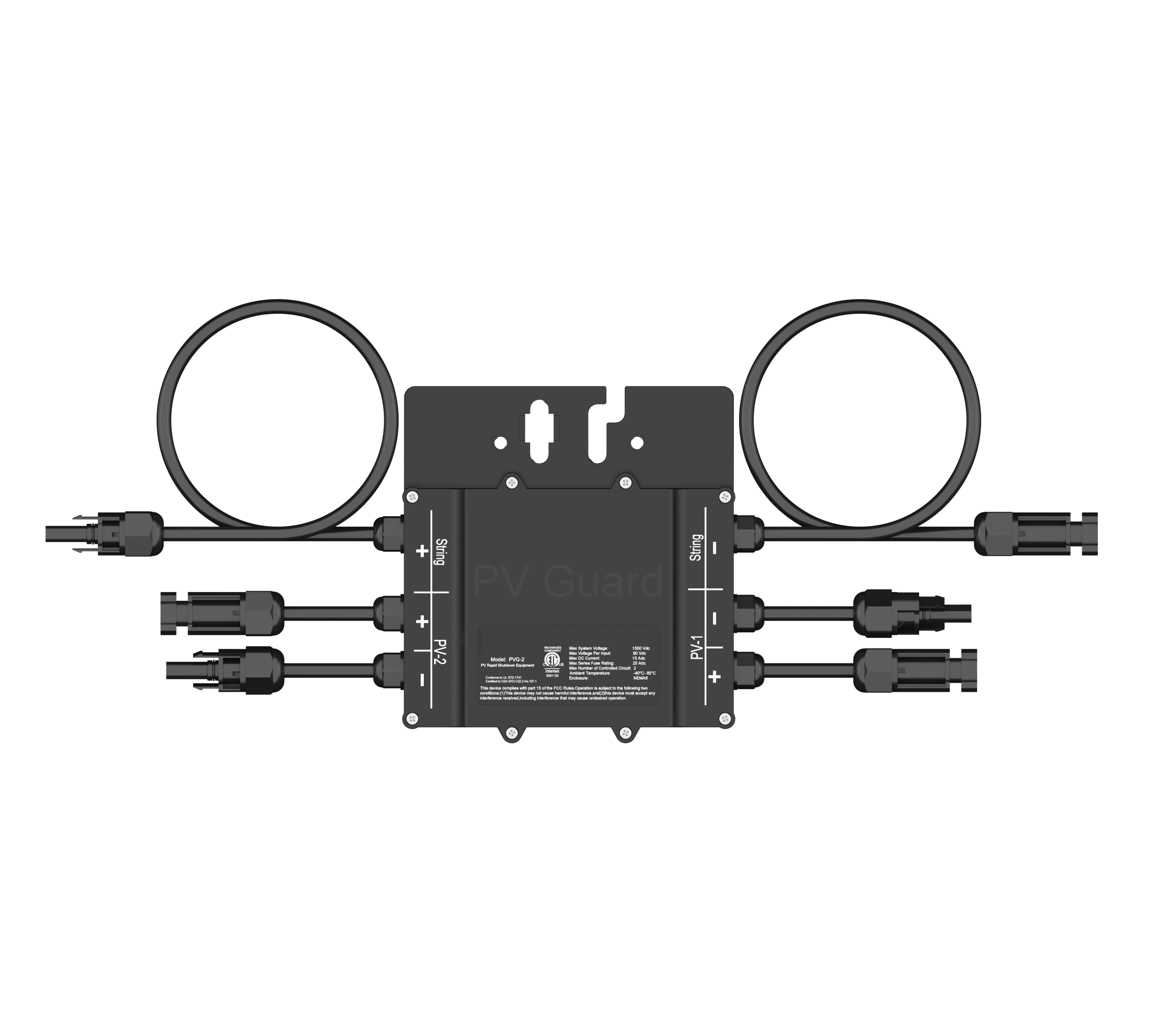

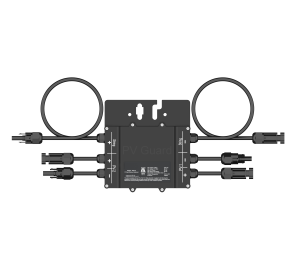

PVG-2
Describe
PVG-2
Input (DC)
| Max DC Open Circult Voltage per Input (Vdc) | 90 |
| Max DC Current per input (Adc) | 15 |
Output (DC)
| Maximum Output Voltage (Vdc) | Voc * n (n=1/2/3/4) |
System
| Maximum System Voltage (Vdc) | 1500 |
Mechancies
| PV Cable | 12AWG |
| PV Connectors | Mc4 (Contact NEP for other connectors options) |
| Size (not including PV cable) | 5.12′ x 4.73′ x 1.14′ (PVG-1) 5.90′ x 5.71′ x 1.00′ (PVG-2) |
| Protection Degree | NEMA 6 |
| Operating Ambient Temperature | -40℃ ~85℃ |
| Mounting Method | Rail, Frame (option) |
Signal
| Communications | DC Power Line Compatible with SunSpec |
Cetifications
| Product Safety Compliance | UL 1741 CSA C22.2 No. 107.1 NEC 2014/2017 690.12 Canada CEC 2015 64-218 |
